M9167E
Motor Drive Electrified Mortise Lock with Mechanical Deadbolt
The Motor Drive Electrified Mortise Lock Mechanical Deadbolt offers efficient and flexible access control design with added security, featuring single action egress. Perfect for use with highly decorative trim. The lock features universal voltage (accepts between 11V –30V) and is available with state-of-the-art monitor functions.
Electrified Locks
- M9067E for doors 1-3/8” minimum.
- M9167E for doors 1-3/4” minimum.
- Standard backsets: 2-1/2”, 2-3/4" for door stiles 4-1/2" or wider (larger backsets available as a special order).
- Latch Bolt is brass, anti-friction type, 3/4" throw (solid latch bolt available as a special order).
- 12-24V AC/DC (11V - 30V Operating Range).
- 250mA MAX Inrush.
- 10mA MAX Holding.
- Non-polarized Leads.

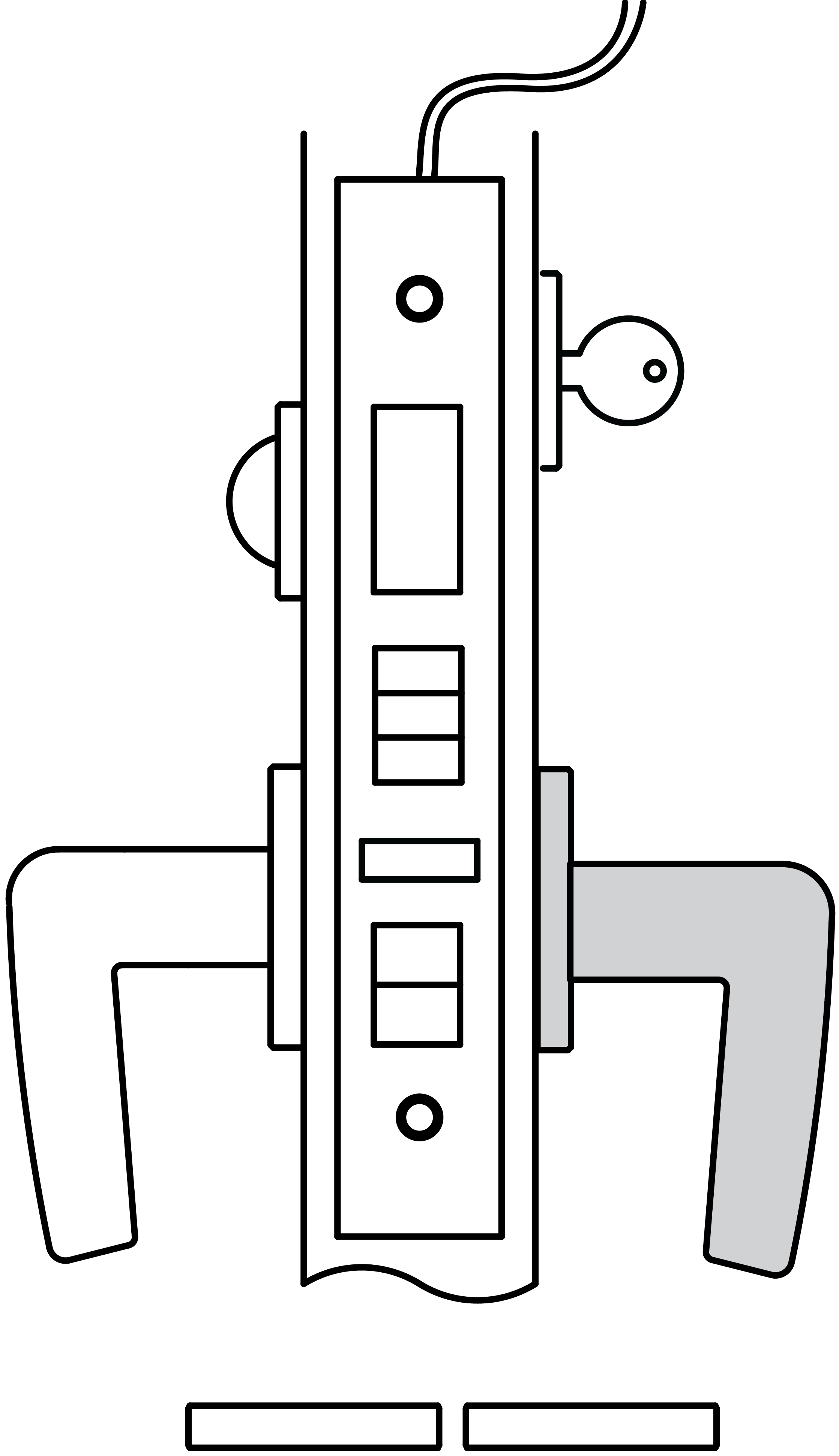

M9167E
- Electromechanical Deadbolt lock with DS Deadbolt Security for enhanced privacy and toggle action switch to Passage Mode.
- Deadbolt by key outside or thumb turn inside.
- If deadbolt is not projected, outside lever can be locked or unlocked with toggle.
- For passage mode, toggle can be set to keep outside lever unlocked.
- After unlocking lever with toggle, lever can only be re-locked by toggle or projecting the deadbolt, not by electronics.
- Inside lever always free, retracting latch and deadbolt simultaneously.
- After retracting deadbolt, outside lever remains locked until manually
- unlocked by toggle or electronically unlocked.
- Extending the deadbolt will reset the toggle to the locked position AND
- DISABLE ELECTRONIC CONTROL.
- Auxiliary latch deadlocks latch bolt.
- Electronic access depends on deadbolt position:
- When DEADBOLT is RETRACTED and outside lever is released via electronics, outside lever retracts latch allowing ingress.
- When DEADBOLT is PROJECTED outside lever is NOT unlocked via
- electronics, a key will be needed for ingress.
- DS Deadbolt secure option (which disables electronic access when
- deadbolt is projected) is included and CANNOT be removed.
- FAIL SECURE OPERATION:
- Outside lever unlocked when power is applied and locked when power is removed. Lockset will lock in the event of power failure.
- FAIL SAFE OPERATION:
- Outside lever locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure ONLY if deadbolt is not projected.
Sell Sheet
Specification Sheet
Operating Instructions
Installation Templates
- T-ALH.M9067E.USD | M9067E.USD-DS
- T-ALH.M9067E|M9067E-DS
- T-ALH.M9167E.USD | M9167E.USD-DS
- T-ALH.M9167E | M9167E-DS
Video
-
M9167E Motor Drive Electrified Mortise Lock Mechanical Deadbolt
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Door Type
Examples
-
Electrified Lock for Entry Door to a Residence | Deadbolt Monitor | Accurate Trim
E.g.: M9167E-DM. 212. 29L/2R. US10B. RH. 134
Notes
- Specify SS for Security Strikes.
- USD K x K Upside Down (cylinder/thumb turn below knobs).
- USD L x L Upside Down (cylinder/thumb turn below levers).
- SLB Solid Latch Bolt (not available for SilentPac™ Quiet Lock).
- K x L Knob Outside, Lever Inside.
- L x K Lever Outside, Knob Inside.
- Compatible with the following add-ons: SilentPac™ Quiet Lock, SilentPac™ Lever Dampening Disc, High Security Solutions
