CH M9100E-SEC
Motor Drive Electrified Crescent Mortise Set
This alternative to the previous generation solenoid version has more flexibility, monitoring features and options for efficient and flexible access control system design. Motor Drive Electrified Mortise Locks feature universal output voltage and can easily be change from FAIL SECURE to FAIL SAFE to adapt to design variations. Paired with ligature resistant Crescent Handle trim, this electrified solution is designed for efficient and flexible access control design in behavioral healthcare settings.
Ligature Resistant
ADA Compliant
- UL listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121) .
- CH M9158E-SEC/CH M9159E/CH M9156E-SEC/CH M9145E-SEC for doors 1-3/4” minimum (1 -1/4” armor front)
- Grade 1 Certified to ANSI/BHMA A156.13.2005 Standard.
- Standard backsets: 2-3/4", 3-3/4", 5", 6".
- Key Cylinder (by others) will override electronics to retract latch bolt.
- 12-24V AC/DC (11V - 30V Operating Range).
- 250mA MAX Inrush.
- 10mA MAX Holding.
- Non-polarized Leads.

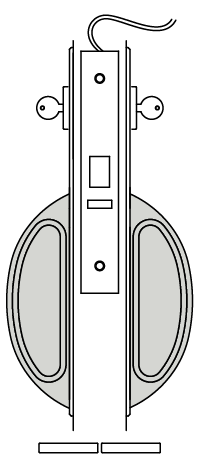

CH M9158E-SEC
- Latch bolt by key either side.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION*: Inside and outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION: Inside and outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.

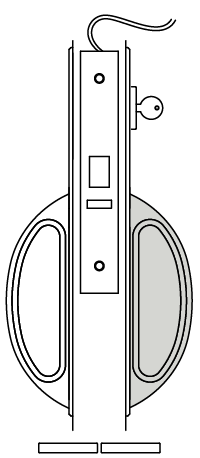

CH M9159E-SEC
- Inside trim always free.
- Latch bolt by key outside.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION*: Outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION: Outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.

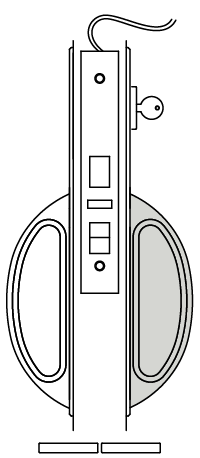

CH M9156E-SEC
- Inside trim always free.
- Latch bolt by key outside.
- Key cylinder (by others) will override electronics to retract latch bolt.
- Auxiliary latch deadlocks latch bolt.
- For passage mode, toggle can be set to keep outside lever unlocked. After unlocking lever with toggle, lever can only be re-locked by toggle, not by electronics.
- FAIL SECURE OPERATION*: Outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION: Outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.
CH M9145E-SEC
- Inside trim always free.
- Latch bolt by key outside.
- Key cylinder (by others) will override electronics to retract latch bolt.
- Auxiliary latch deadlocks latch bolt.
- Rotating the key in one direction would place the lock in “unlocked” state (passage), blocking the electrified function.
- Rotating the key in the opposite direction would return the lock to standard electrified operation.
- FAIL SECURE OPERATION*: Outside trim unlocked when power is applied and locked when power is removed.
- FAIL SAFE OPERATION: Outside trim locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of power failure.
Sell Sheet
Product Catalog
-
Ligature Resistant Catalog
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function-Sec-Monitor. Backset. Trim. Finish. Hand. 134. Special Options
Examples
-
Crescent Handle | Electrified Lock | For Access Control Openings
E.g.: CH M9159E-SEC-AE. 234. L.PC. US32D. RH. 134 -
Crescent Handle | Electrified Lock| Both Sides with Deadlatch Monitoring | Add SilentPac
E.g.: CH M9158E-SEC-AM. 234. S.PC. US32D. LH. 134. SP -
Crescent Handle | Electrified Lock| Passage Mode by Authorized Personnel Only
E.g.: CH M9145E-SEC. 234. L.PC. US26D. RH. 134
Notes
- Special Options:
- Specify SP: SilentPac™ Lever Dampening Disc
- Specify ETCH: Custom Etching
- Specify AV: Anti-Vandal Trim
- Specify LRCC.A: Ligature Resistant Cylinder Collar (‘A’ based on cylinderapplication or length)
