SL1700SDL
Self-Latching Narrow Backset Sliding Door Lock
The self-latching narrow backset sliding door lock brings the trusted performance of the 1700 Series to sleek sliding door applications. Designed for narrow stile aluminum storefront and glass partition systems, it maintains clean sightlines while delivering dependable latching action for commercial environments. Ideal for office, healthcare, and storefront openings, the self-latching mechanism allows the latch bolt to engage automatically when the door closes—providing secure, easy operation without compromising aesthetics.
- Stainless steel case.
- Brass, bronze, aluminum or stainless steel armor front, finished as required.
- Brass or stainless steel, solid type 1/2” latch bolt throw.
- 4-7/8” x 1-1/4" standard strike.
- 1-1/8" backset standard, other backsets available as a special order.
- Hubs set up to accept 8mm spindles. Other sizes can be accommodated.
- Brass, stainless steel or oil rubbed bronze dust box.

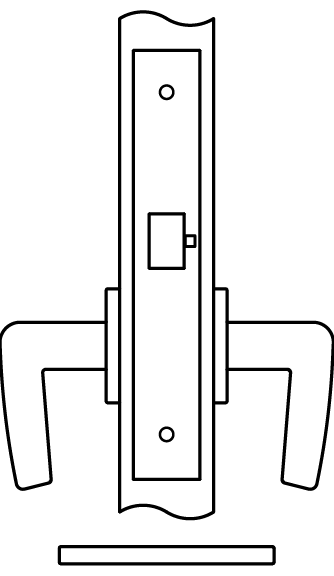

SL1725SDL | Passage
- Latch bolt by lever either side.
SL1745SDL | Classroom
- Latch bolt by lever either side unless outside lever is locked by key.
- Inside lever always free egress.
SL1750SDL | Entrance
- Latch bolt by lever either side unless outside lever locked by thumb turn inside or key outside.
- When outside lever is locked, operating the inside lever will NOT unlock outside lever.

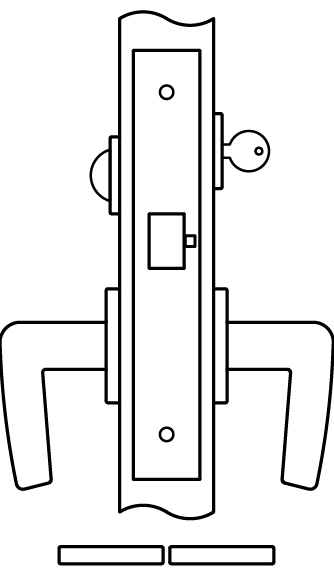

SL1753SDL | Entrance
- Latch bolt by lever either side unless locked by thumb turn inside or key outside (both levers become rigid).
- No emergency egress.

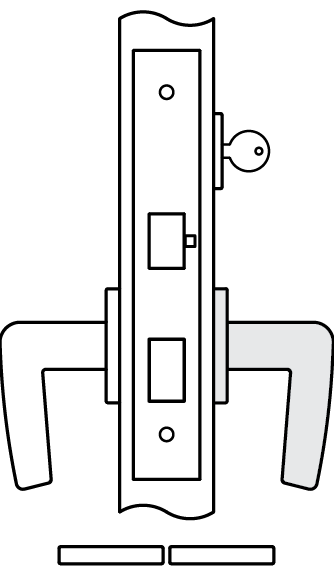

SL1756SDL | Entrance or Office
- Latch bolt by key outside and lever either side unless outside lever is locked by toggle.

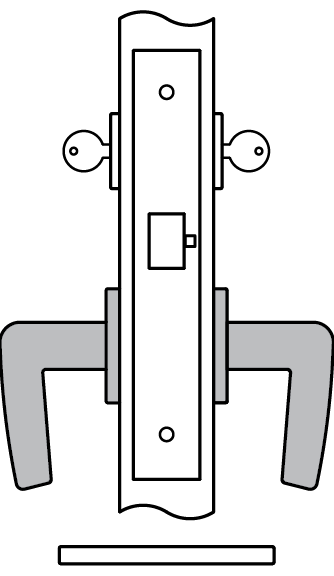

SL1758SDL | Institution or Asylum
- Latch bolt by key either side.
- Dummy handles required to slide door.

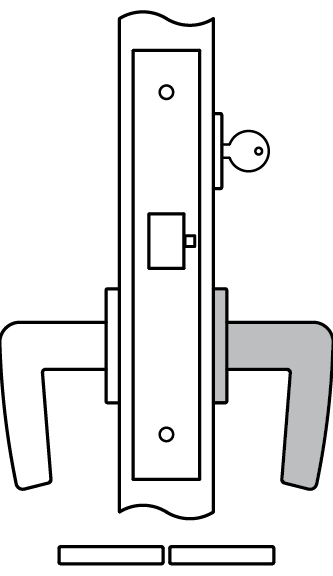

SL1759SDL | Storeroom or Closet
- Latch bolt by lever inside and key outside.
- Outside lever always rigid.
Specification Sheet
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Lock. Backset. Trim. Finish. Hand. Doorthickness.
Examples
-
Storeroom Lock | Accurate Trim
E.g.: SL1759SDL. 118. 19L/2R. US26D. RH. 134 -
Passage Lock | Custom Levers by Others | 8mm Spindle
E.g.: SL1725SDL. 118. LxL 8mm. US10B. LH. 134 -
Thumb Turn Cylinder Inside, Cylinder Outside | Accurate Pulls
E.g.: SL1758SDL. 118. US10B. RH. 134
