9500MRL
Magnetic Roller Latch
The Magnetic Roller Latch offers a seamless doorway that offers privacy with minimal hardware. A rare-earth magnet pulls the roller latch into the lipless strike without any levers or knobs. Popular uses include concealed jib doors that are popular in powder rooms, en-suite bathrooms, bedrooms, closets or libraries.
Magnetic Latch
- Backsets: 2-1/2" and 2-3/4" backset for door stiles starting at 3-3/4".
- Case: Heavy Gauge Steel (3⁄4” thick)
- Armor Front: Adjustable bevel. Made from brass, bronze or stainless steel and finished as required.
- Latch Bolt: 7⁄16” throw. Magnetic stainless steel.
- Deadbolt: Brass or stainless steel. 1/2” throw.

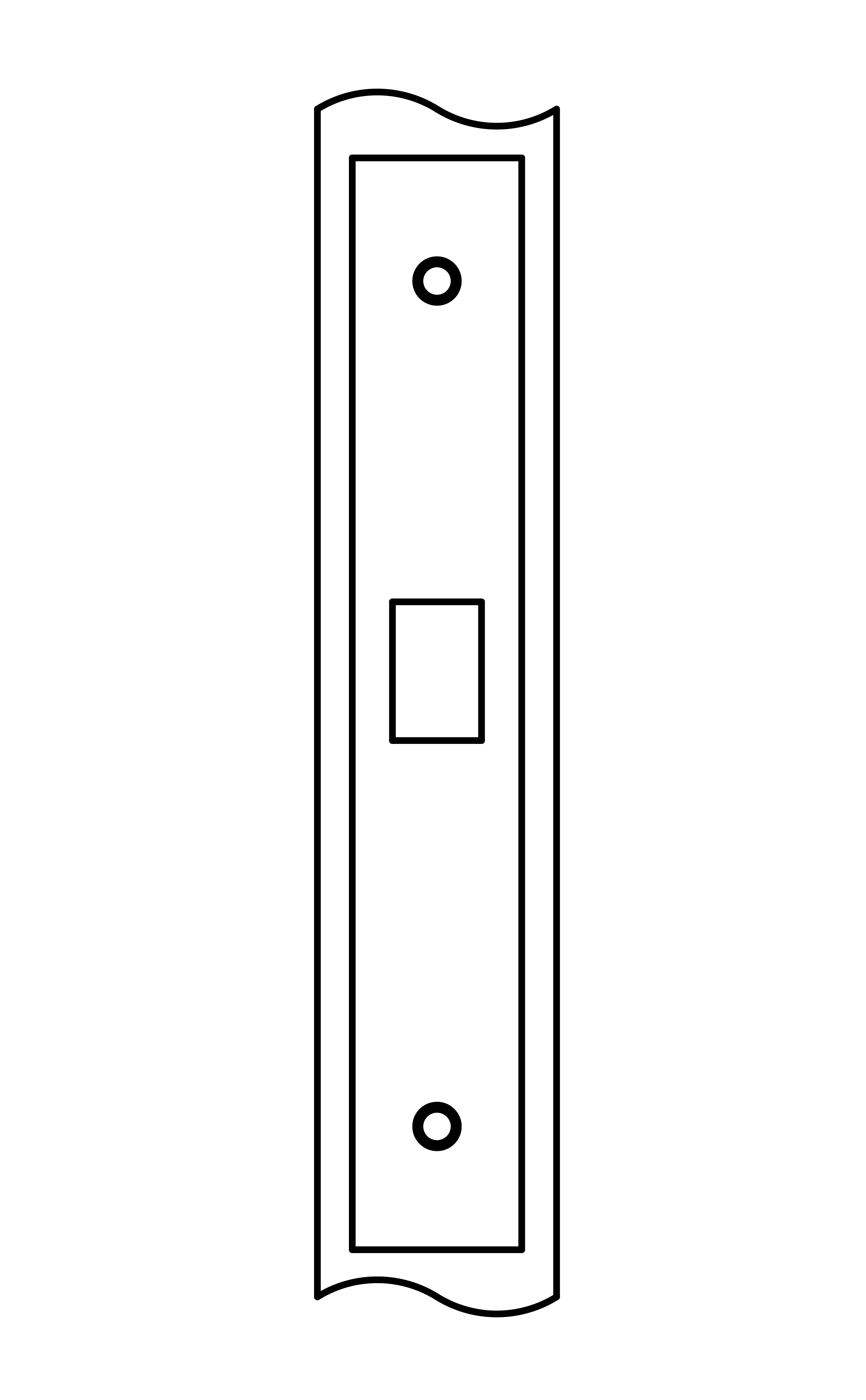

9525MRL Passage Magnetic Roller Latch
- Latch bolt by lever either side.

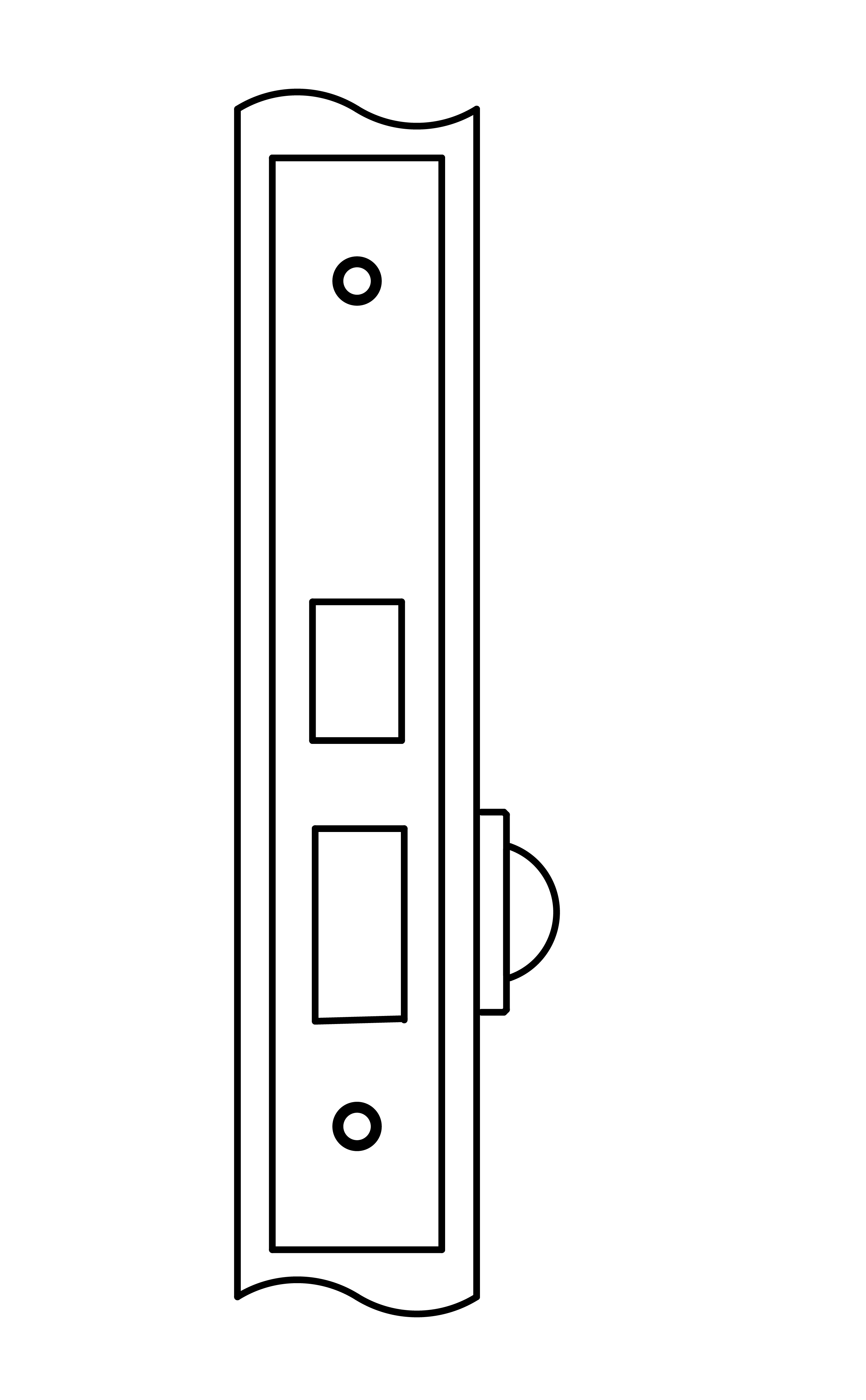

9539MRL Privacy Magnetic Roller Latch
- Latch bolt by knob or lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.
Sell Sheet
Specification Sheets
Installation Templates
Video
-
9500MRL Product Spotlight
Click on a swatch below to get a closer look
-
CVB
Cerakote Vortex Bronze
-
CBG
Cerakote Black Gloss
-
Cerakote White Gloss
CWG
-
CWM
Cerakote White Matte
-
CBM
Cerakote Black Matte
-
US4
Satin Brass
-
US4NL
Satin Brass + No Lacquer
-
US32D
Satin Stainless Steel
-
US26D
Satin Chrome
-
US3
Polished Brass
-
US3NL
Polished Brass + No Lacquer
-
US26
Polished Chrome
-
US32
Bright Stainless Steel
-
US9
Polished Bronze
-
US10
Satin Bronze
-
US10B
Oil Rubbed Bronze
-
US14
Polished Nickel
-
US15
Satin Nickel
-
US19
Oxidized Black + Lacquer
-
US19LL
Oxidized Black Less Lines + Lacquer
-
BN
Burnished Nickel
-
BB
Burnished Brass
-
TN
Tarnished Nickel
-
TB
Tarnished Brass
-
DURO
Duronotic
-
ESN
Electroless Nickel
-
US15A
Antique Nickel
-
US5
Satin Brass + Black
-
Cerakote
Protective Ceramic Coating
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Door Thickness.
Examples
-
Interior Magnetic Roller Latch | Privacy | Accurate Trim
E.g.: 9539MRL. 212. FP-E/21L/1R/GF1106. US26D. 134 -
Interior Magnetic Roller Latch | Passage | Accurate Trim
E.g.: 9525MRL. 212. FP-B. US4. 134 -
Interior Magnetic Roller Latch | Passage | No Trim
E.g.: 9525MRL. 212. US19. 134
