9100BL
Beveled Safety Latch
Beveled Safety Latches were developed to further diminish ligature risks in behavioral healthcare settings. In some cases, the latch bolt itself has been used to anchor bed sheets (or similar) between the door and frame while the door is closed. An upward, downward, or horizontal force from inside the room will cause the latch to retract and release a ligature attempt making it a safe option for high-risk areas.
Ligature Resistant
ADA Compliant
- Can be specified with all Accurate 9100 Grade 1 Mortise Locks, with any trim.
- Meets BHMA 156.34 Ligature Resistant Trim Standard.
- Latch bevel on top and bottom diminishes ligature points.
- Whenever the Beveled Safety Latch is specified, locks are modified not to have an anti-pick bolt. Please specify with caution, evaluating every opening for what is most important: safety or security.
- Not recommended for applications where security is a concern like storage rooms, electric closets, asylum rooms or wherever doors swing out.

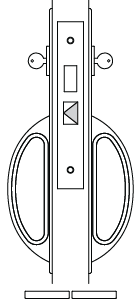

CH 9122BL Store Door
- Latch bolt by handle either side unless deadbolt is thrown.
- Inside handle won’t retract deadbolt when projected.*
- Deadbolt by key either side.
- *Verify code compliance before specifying this function.

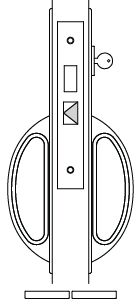

CH 9124BL Dormitory
- Latch bolt by handle either side unless deadbolt is thrown, in which case outside handle becomes rigid.
- A turn of inside handle retracts latch and deadbolt simultaneously, automatically unlocking outside handle.
- Deadbolt by key outside.

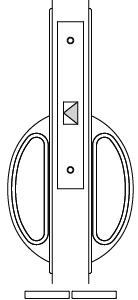

CH 9125BL Passage
- Latch bolt by handle either side.

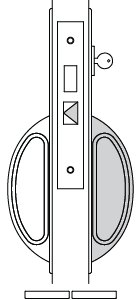

CH 9134BL Hotel or Motel Lock
- Latch bolt by handle inside and Guest or Master Key outside.
- Outside handle always rigid.
- Deadbolt by key outside.
- Turn of inside handle retracts latch and deadbolt simultaneously.
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9134BLD).
CH 9142BL Entrance or Public Restroom
- Latch bolt by handle either side unless outside handle is locked by Master Key from inside.
- When outside handle is locked, latch bolt by key outside and handle inside.
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9142BLD).

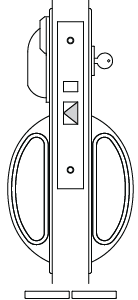

CH 9143BL Institutional Privacy
- Latch bolt by handle either side unless outside handle is locked by thumb turn.
- Thumb turn locks or unlocks outside handle.
- Key locks or unlocks outside handle.
- Key retracts latch as an independent function of thumb turn to allow retraction if thumb turn is forcibly held in locked position.
- Outside handle unlocks when inside handle is turned or door closes.
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9143BLD).

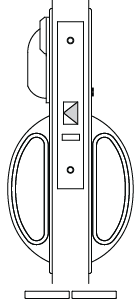

CH 9143E-BL Institutional Privacy Emergency Release
- Latch bolt by handle either side unless outside handle is locked by thumb turn.
- Thumb turn locks or unlocks outside handle.
- Emergency release locks or unlocks outside handle.
- Auxiliary latch deadlocks latch bolt.
- Outside handle unlocks when inside handle is turned or door closes.

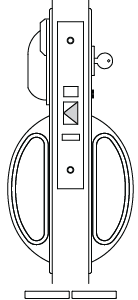

CH 9143i-BL Institutional Privacy with Occupancy Indicator
- Same operation as 9143 Institutional Privacyexcept outside plate has an occupancy indicator.

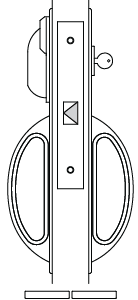

CH 9144BL Institutional Privacy
- Latch bolt by handle either side unless outside handle is
- locked by thumb turn.
- Thumb turn locks or unlocks outside handle.
- Key locks or unlocks outside handle.
- Key retracts latch as an independent function of the
- thumb turn to allow retraction if thumb turn is forcibly held in locked position.
- Outside handle unlocks when inside handle is turned (closing door will not unlock outside handle).
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9144BLD).

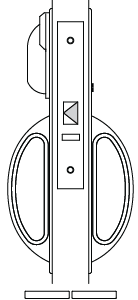

CH 9144E-BL Institutional Privacy
- Latch bolt by handle either side unless outside handle is locked by thumb turn.
- Thumb turn locks or unlocks outside handle.
- Emergency release locks or unlocks outside handle.
- Auxiliary latch deadlocks latch bolt.
- Outside handle unlocks when inside handle is turned (closing door will not unlock outside handle).

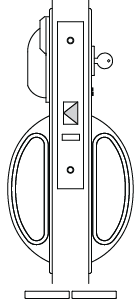

CH 9144i-BL Institutional Privacy with Occupancy Indicator
- Same operation as 9144 Institutional Privacy except outside plate has an
- occupancy indicator.
CH 9145BL Classroom
- Latch bolt by key outside and handle either side unless outside handle is locked by key.
- Auxiliary latch removed in favor of Bevele Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9145D-BL).

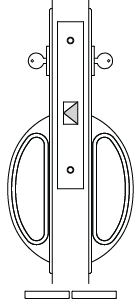

CH 9145S-BL Classroom Security
- Latch bolt by handle either side unless outside handle is locked by key outside or inside.
- When locked, latch bolt retracted by key inside or outside or handle inside.
- Inside handle is always free.
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9145S-BLD).
CH 9146BL Classroom Double Locking
- Latch bolt by key from either side.
- Key from either side locks and unlocks outside and inside handles.*
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9146BLD, recommended if door swings out).
- *Verify code compliance before specifying this function.

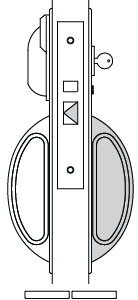

CH 9147i-BL Staff Bathroom
- Inside handle always free, outside handle always rigid, entry by key only.
- Indicator automatically reverts to green (unoccupied) when door is closed.
- When thumb turn is thrown to indicate occupancy, key will override to retract latch.
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9147i-BLD, recommended if door swings out).

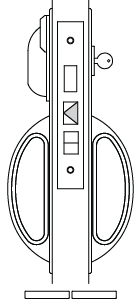

CH 9148BL Entrance
- Latch bolt by key outside and handle either side unless outside handle is locked by toggle action stop.
- Deadbolt by key outside.
- Turning inside handle retracts latch and deadbolt simultaneously.
- Outside handle remains locked until manually unlocked by toggle.

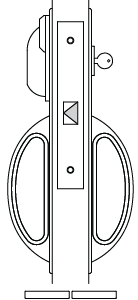

CH 9153BL Institutional Privacy
- Latch bolt by key outside and handle either side unless outside handle is locked by thumb turn or key.
- Key or thumb turn locks or unlocks outside handle.
- Operating inside handle will not unlock outside handle if locked
- Auxiliary latch deadlocks latch bolt.

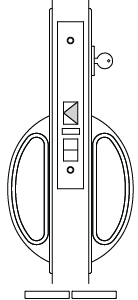

CH 9156BL Entrance
- Latch bolt by key outside and handle either side unless outside handle is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt

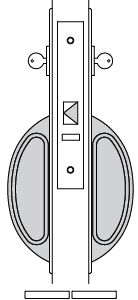

CH 9158BL Institutional or Asylum
- Latch by key either side.
- Inside and outside handle always rigid.*
- Auxiliary latch deadlocks latch bolt.
- *Verify code compliance before using this function.

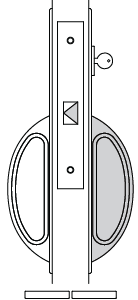

CH 9159BL Storeroom
- Latch by handle inside and key outside.
- Outside handle always rigid.
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9159BLD,
- recommended if door swings out).

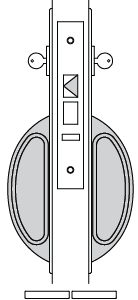

CH 9160BL Asylum with Deadbolt
- Latch by key either side.
- Deadbolt by key either side (key projects deadbolt and retracts latch bolt and deadbolt).
- Inside and outside handle always rigid.*
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9160BLD, recommended if door swings out).
- *Verify code compliance before using this function.

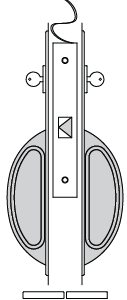

CH M9158E-BL Motor Drive Electrified Mortise Set
- UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121)
- Latch bolt by key either side.
- FAIL SECURE OPERATION:
- Inside and outside trim unlocked when power is applied, and locked when power is removed

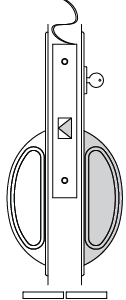

CH M9159E-BL Motor Drive Electrified Mortise Set
- UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121)
- Inside trim always free.
- Latch bolt by key outside.
- FAIL SECURE OPERATION*:
- Outside trim is unlocked when power is applied,
- and locked when power is removed.
Sell Sheet
Installation Instruction
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Special Options
Examples
-
Crescent Handle | Passage | Closet Doors | Anti-Vandal Trim
E.g.: CH 9125BL. 234. S.PC. US26D. RH. 134. AV -
Crescent Handle | Institutional Privacy | Add SP For Patient Bathroom
E.g.: CH 9143BL. 234. L.PC. US26D. RHR. 134. SP -
Crescent Handle | Motor Drive Electrified | For Access Control Openings
E.g.: CH M9159E-BL-AE. 5. L.PC. US26D. LHR. 134
Notes
- Please specify Beveled Latch (BL) with caution and evaluate each opening for what is most important: safety or security.
- Special Options Available:
- Specify SP: SilentPac™ Lever Dampening Disc
- Specify ETCH: Custom Etching
- Specify AV: Anti-Vandal Trim
