9147i
Staff Restroom Lockset
The 9147i Specialty Function with Occupancy Indicator is designed for privacy applications where authorized access is always needed. Clearly showing when room is in use, it is popularly used for staff restrooms or similar environments where occupancy status is desired. Can be paired with Crescent Handle or Push/Pull Trim and available with High Security or Beveled Latch.
Ligature Resistant
- Available with High Security or Grade 1 Mortise Lock.
- Inside thumb turn confirms status of outside indicator.
- Outside lever always rigid, entry by key only.
- When thumb turn is thrown to indicate occupancy, key will override to retract latch.
- Indicator automatically resets to green (unoccupied) when door is closed.
- US26D/US32D finish standard, anti-microbial plating available.
- Supplied with Torx® Security Screws.
- 2-3/4" backset standard, other backsets available.
- Dimensions: 12-1/4" high by 4-13/32" wide with a projection of 2-1/8".

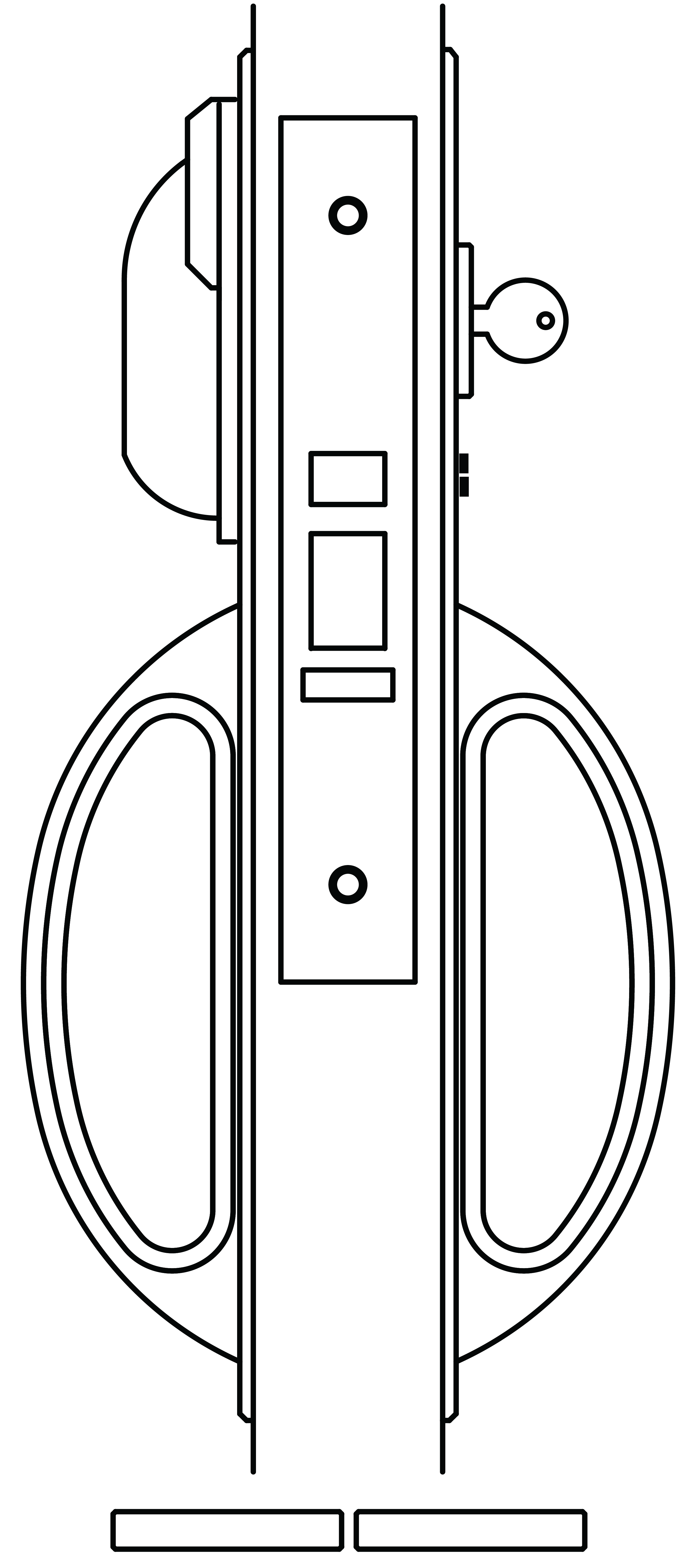

CH 9147i-SEC
- Inside handle always free, outside handle always rigid, entry by key only.
- Indicator automatically reverts to green (unoccupied) when door is closed.
- When thumb turn is thrown to indicate occupancy, key will override to retract latch.

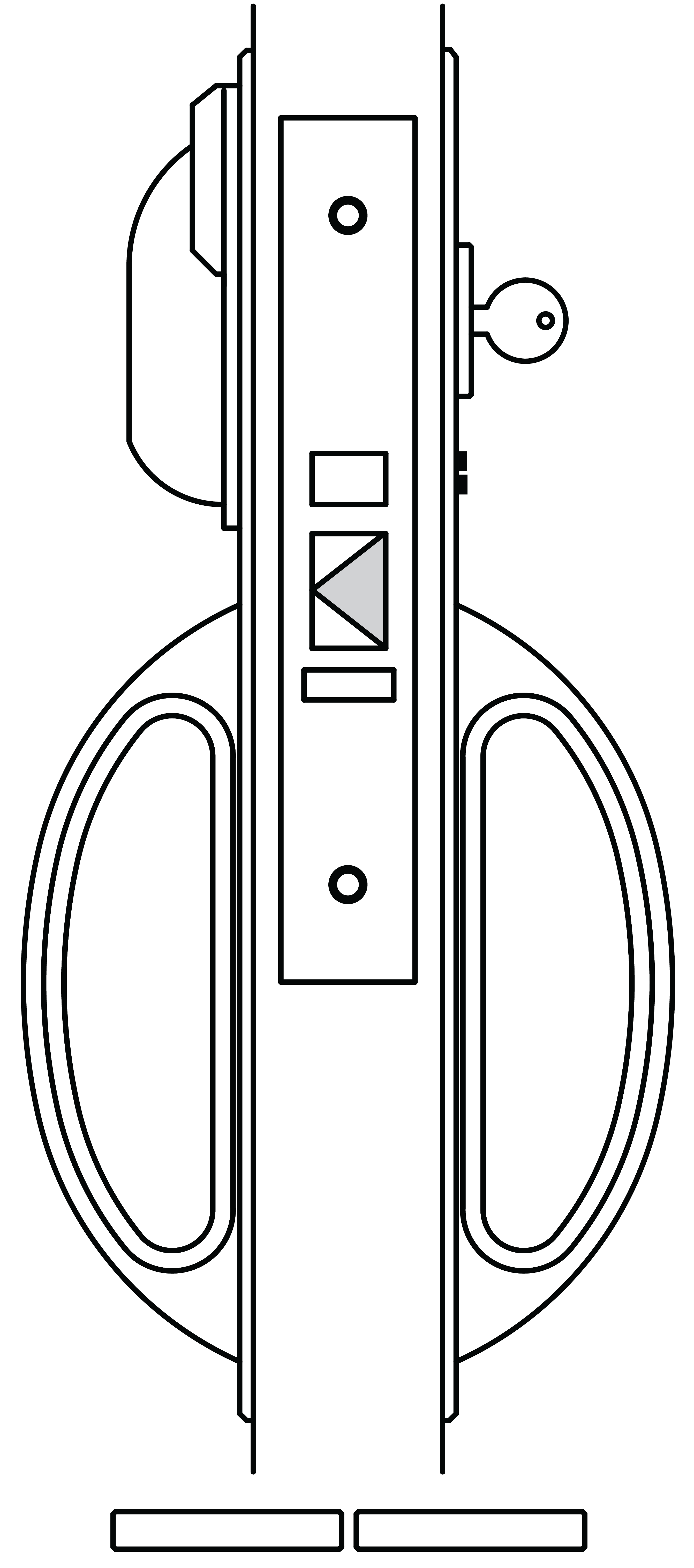

CH 9147i-BL Staff Restroom
- Inside handle always free, outside handle always rigid, entry by key only.
- Indicator automatically reverts to green (unoccupied) when door is closed.
- When thumb turn is thrown to indicate occupancy, key will override to retract latch.
- Auxiliary latch removed in favor of Beveled Latch (if auxiliary latch is required to deadlock the latch bolt, please specify CH 9147i-BLD, recommended if door swings out).

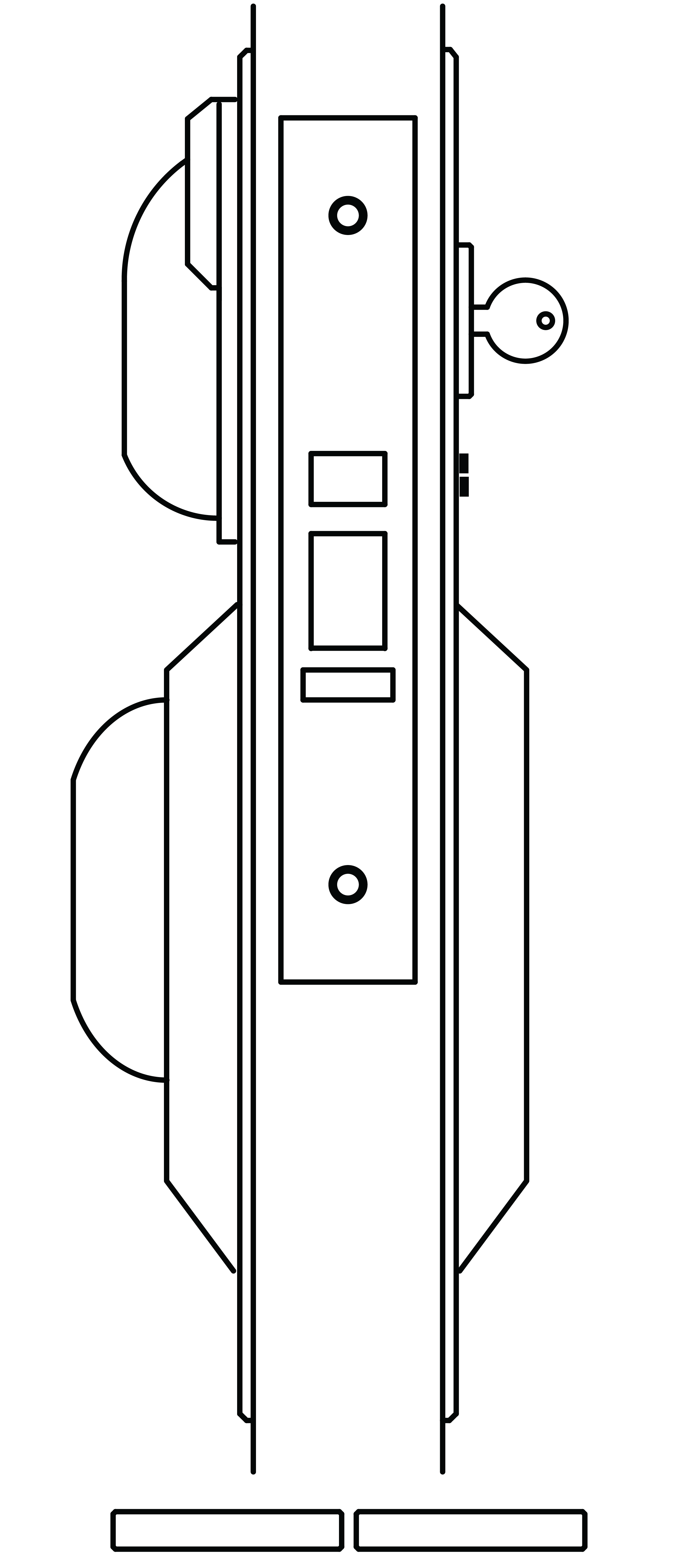

9147i-ALP Staff Restroom
- Inside handle always free, outside handle always rigid, entry by key only.
- Indicator automatically reverts to green (unoccupied) when door is closed.
- When thumb turn is thrown to indicate occupancy, key will override to retract latch.
Sell Sheet
Video
-
CH 9147iSEC Installation
Product Catalog
-
Ligature Resistant Catalog
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Staff Rest Room Lockset | Crescent Handle Trim
E.g.: CH 9147i-SEC. 234. L.PC. US26D. RH. 134 -
Staff Rest Room Lockset | Beveled Latch
E.g.: CH 9147i-BL. 234. L.PC. US26D. RH. 134 -
Staff Rest Room Lockset | Safety Push Pull
E.g.: 9147i-ALP. 234. US26D. LH. 134
