CH-TUB

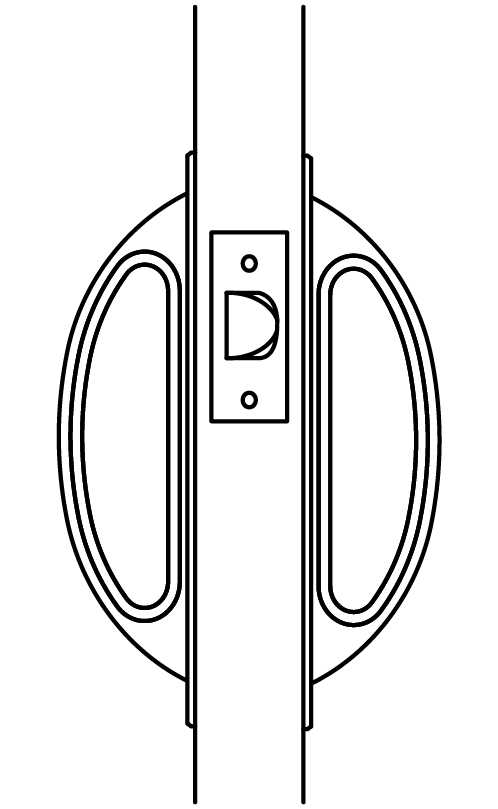

Crescent Tubular Set
An alternative retrofit option for existing low-traffic openings like closets or storage areas. The Crescent Tubular Lock Set is designed for passage applications on non-fire rated doors.
Ligature Resistant
ADA Compliant
- The highest level of ligature resistance featuring Paperclip Protection.
- For use on cylindrical (ANSI 161) door preparations.
- US26/US32D finish standard, anti-microbial plating available.
- Supplied with Torx® Security Screws.
- 2-3/4" backset standard, custom cover plates available for retrofit applications.
-
- + Dimensions: 7 1/8" high by 4 7/16 wide with a projection of 2 1/4"
CH-TUB Passage
- Latch bolt by handle either side.
Sell Sheet
Installation Template
Product Catalog
-
Ligature Resistant Catalog
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
CH-TUB. Backset. Finish. Hand. Door Thickness.
Examples
-
Crescent Handle | Tubular Passage Latch | No Strike Required
E.g.: CH-TUB. 234. US26D. RH. 134
