GR87
Rabbeted Glass Patch Mortise Set
This rabbeted glass patch hardware set features single action egress for code compliance and anti-friction latch for more reliable closing and operation. The GR87 offers more functionality and features to fit any design intent. The GR87 is offered as a complete package including lock body, patch assembly and levers, compatible with US mortise cylinders.
- Single action egress for code compliance.
- Features a smoother, upgraded latch that results in more reliable closing.
- Reduced friction when engaging with strike allows for high performance.
- For inswing and outswing doors that use proprietary framing.
- Fits 1/2" tempered glass, other door thicknesses available.

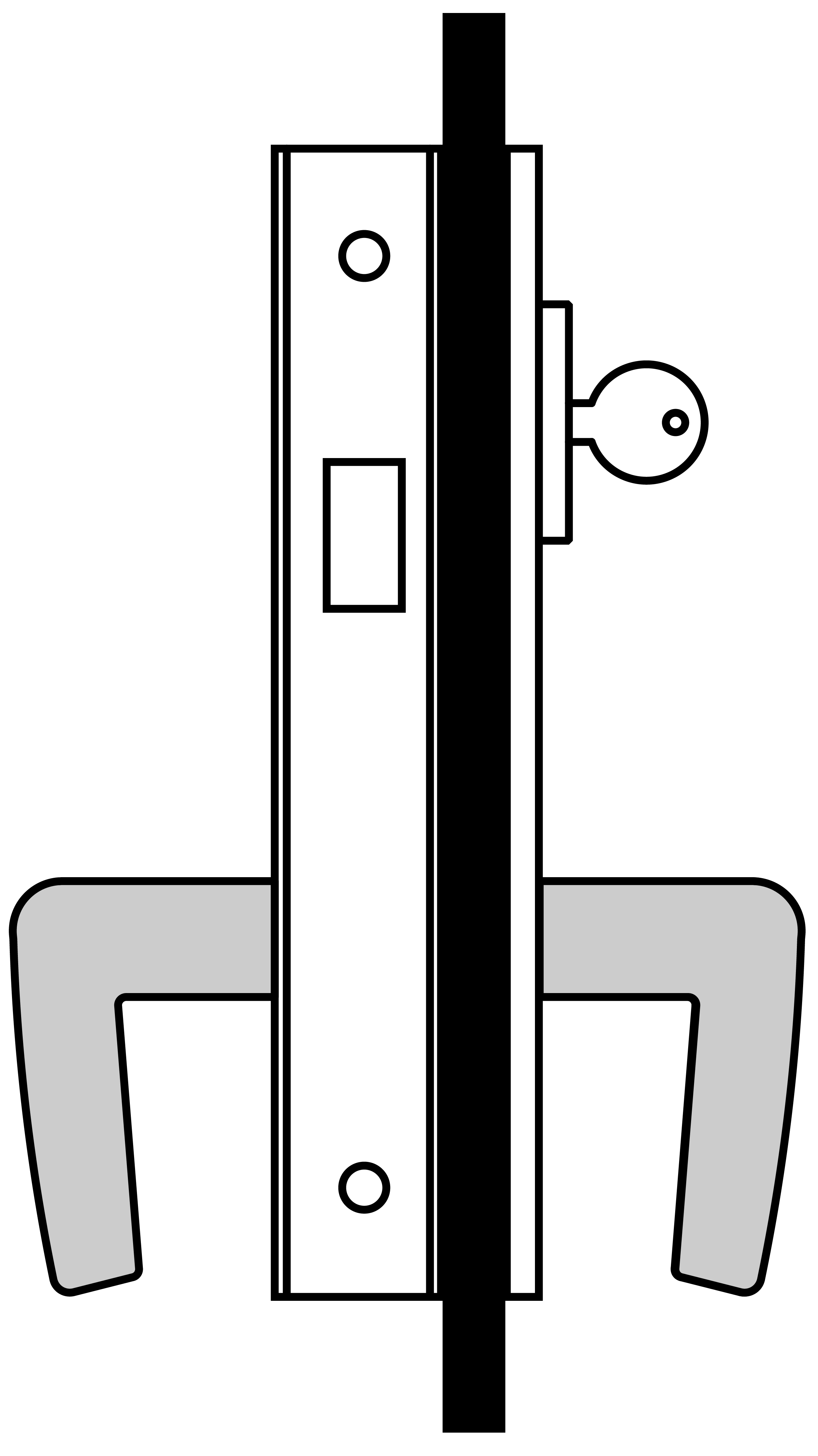

GR8701 Deadlock
- Deadbolt by key outside, no inside operation.

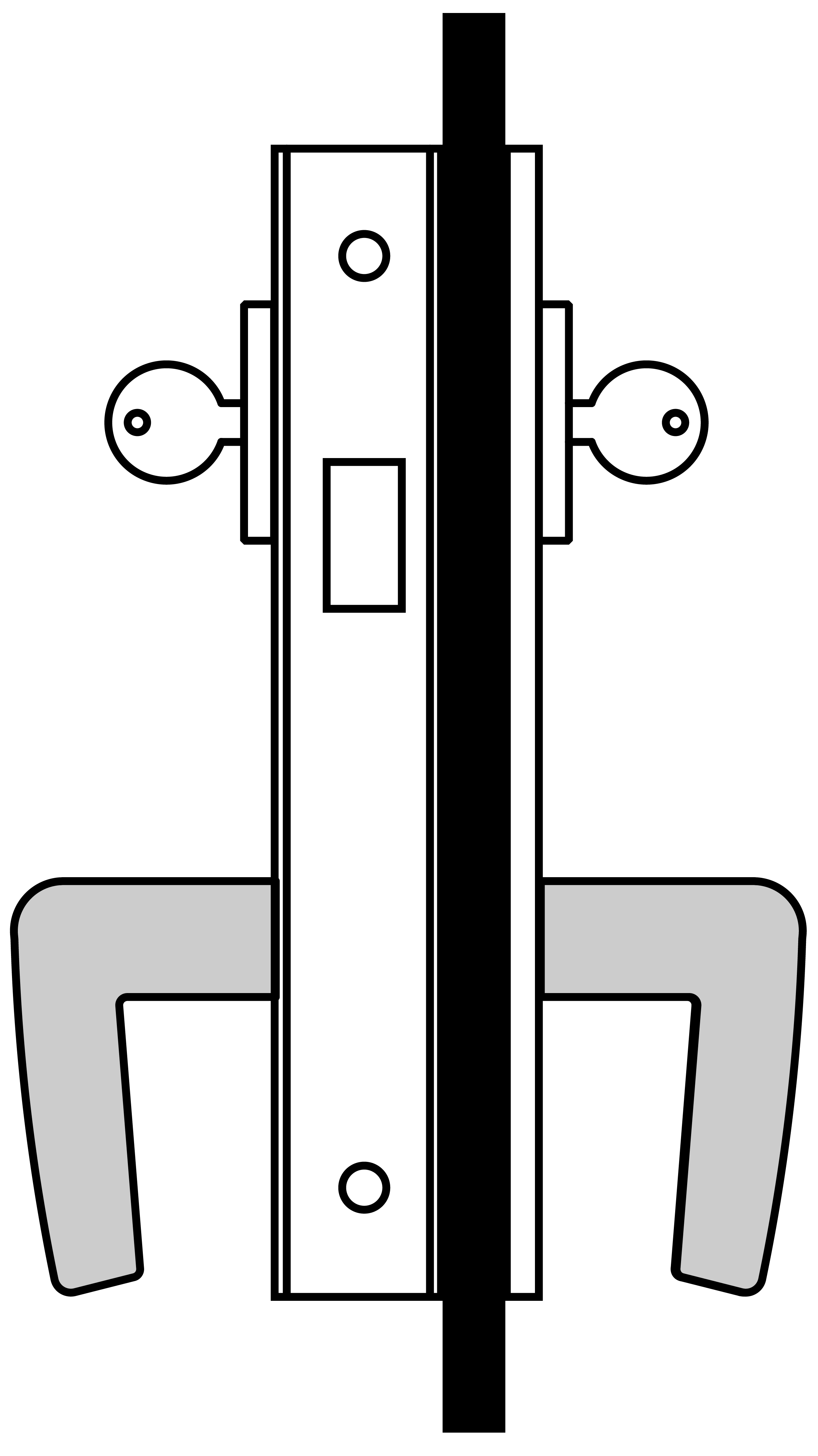

GR8702 Deadlock
- Deadbolt by key either side.

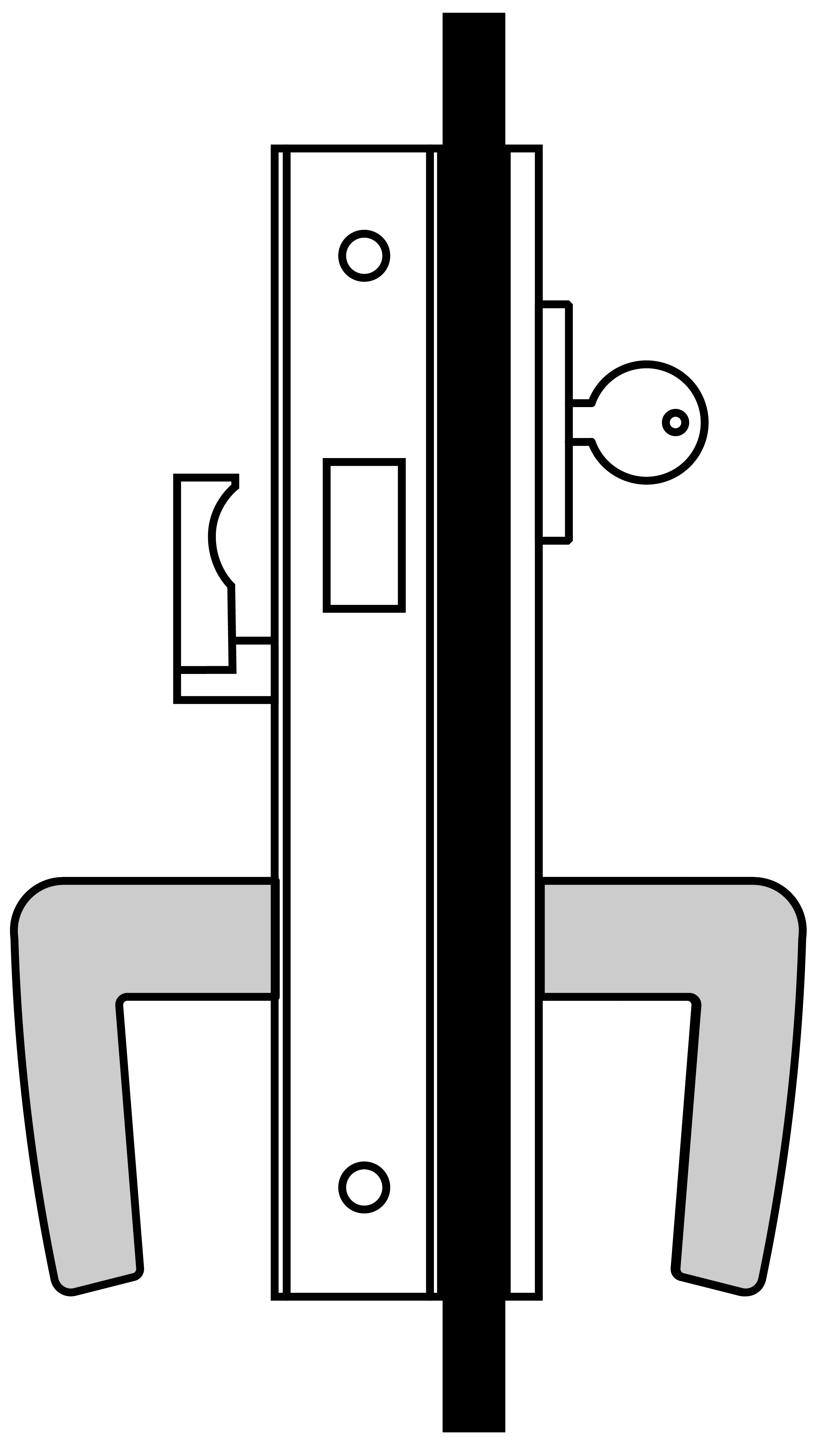

GR8703 Deadlock
- Deadbolt by key outside, thumb turn inside.

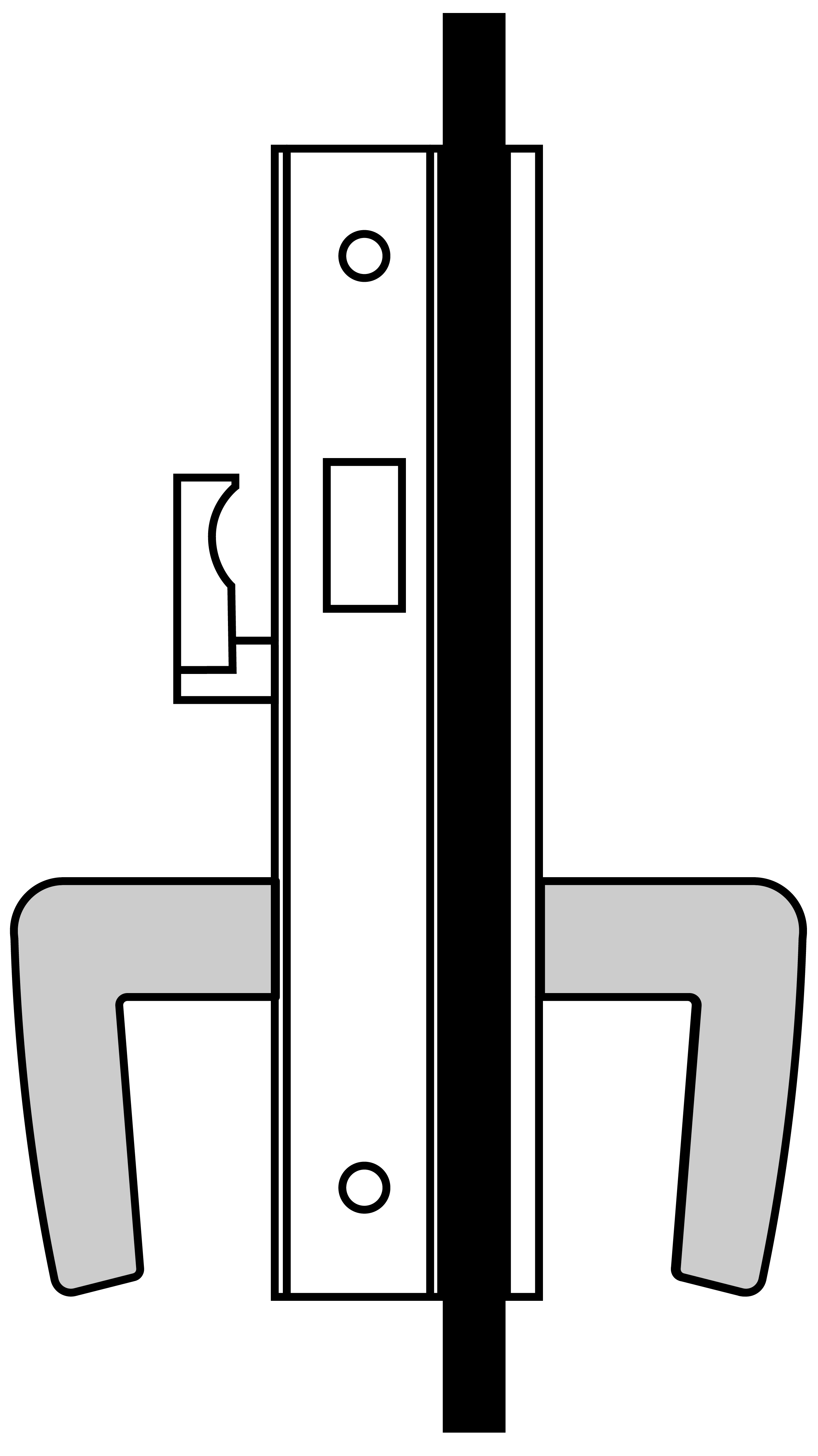

GR8704 Deadlock
- Deadbolt by thumb turn inside only.

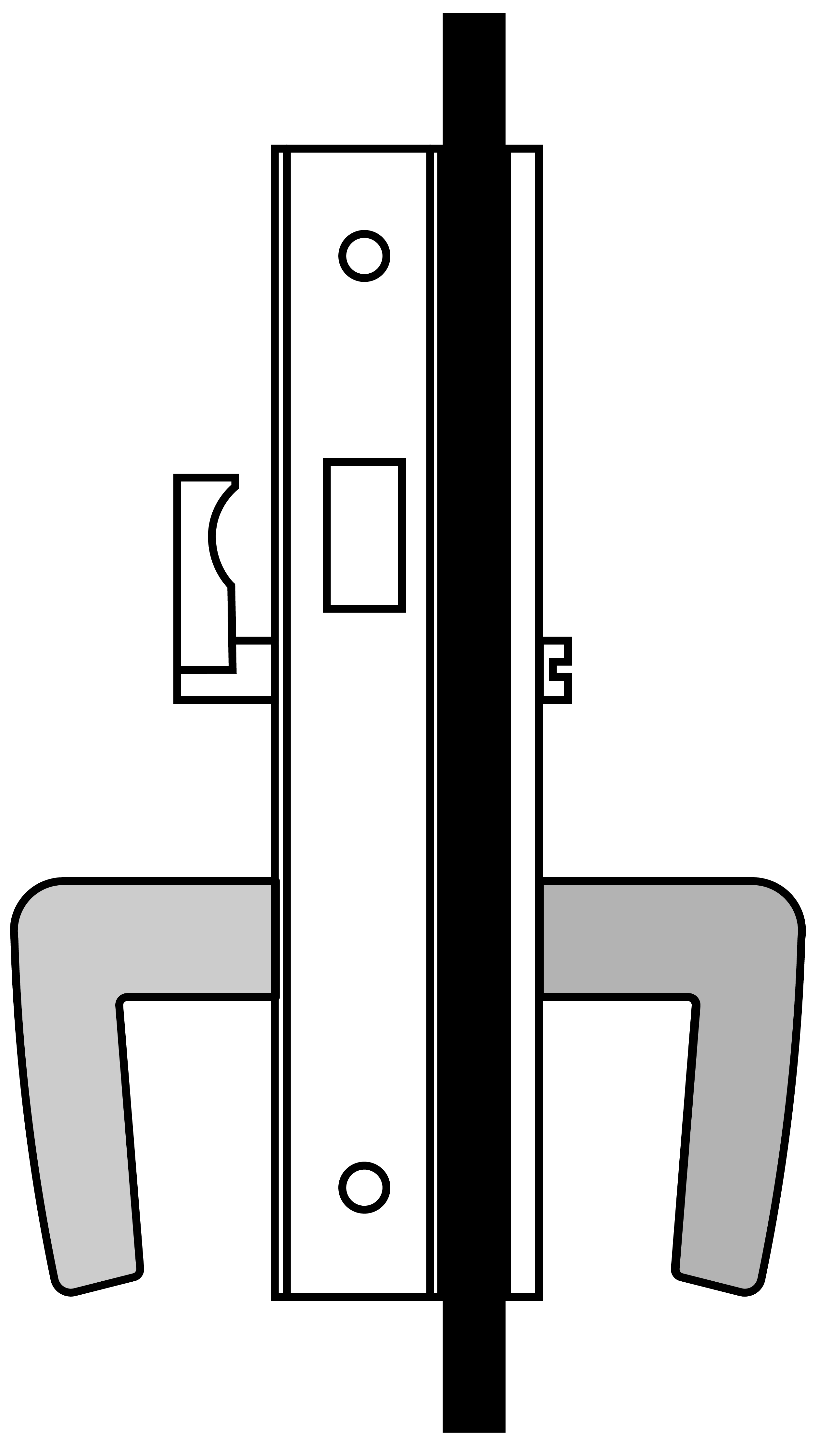

GR8705 Deadlock
- Deadbolt by emergency release outside, thumb turn inside.

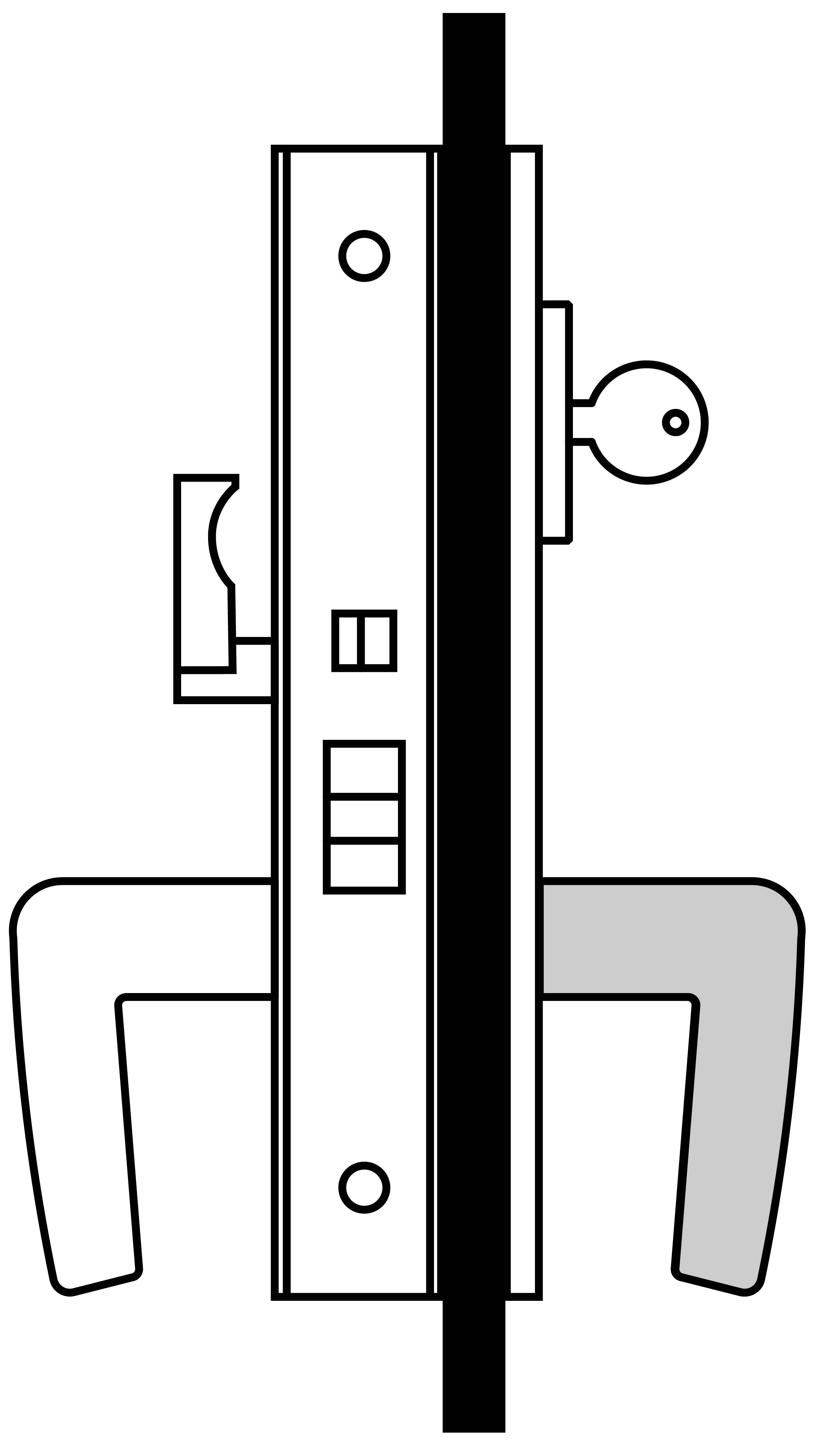

GR8724 Entrance
- Latch bolt by lever either side.
- Deadbolt by key outside and turn piece inside.

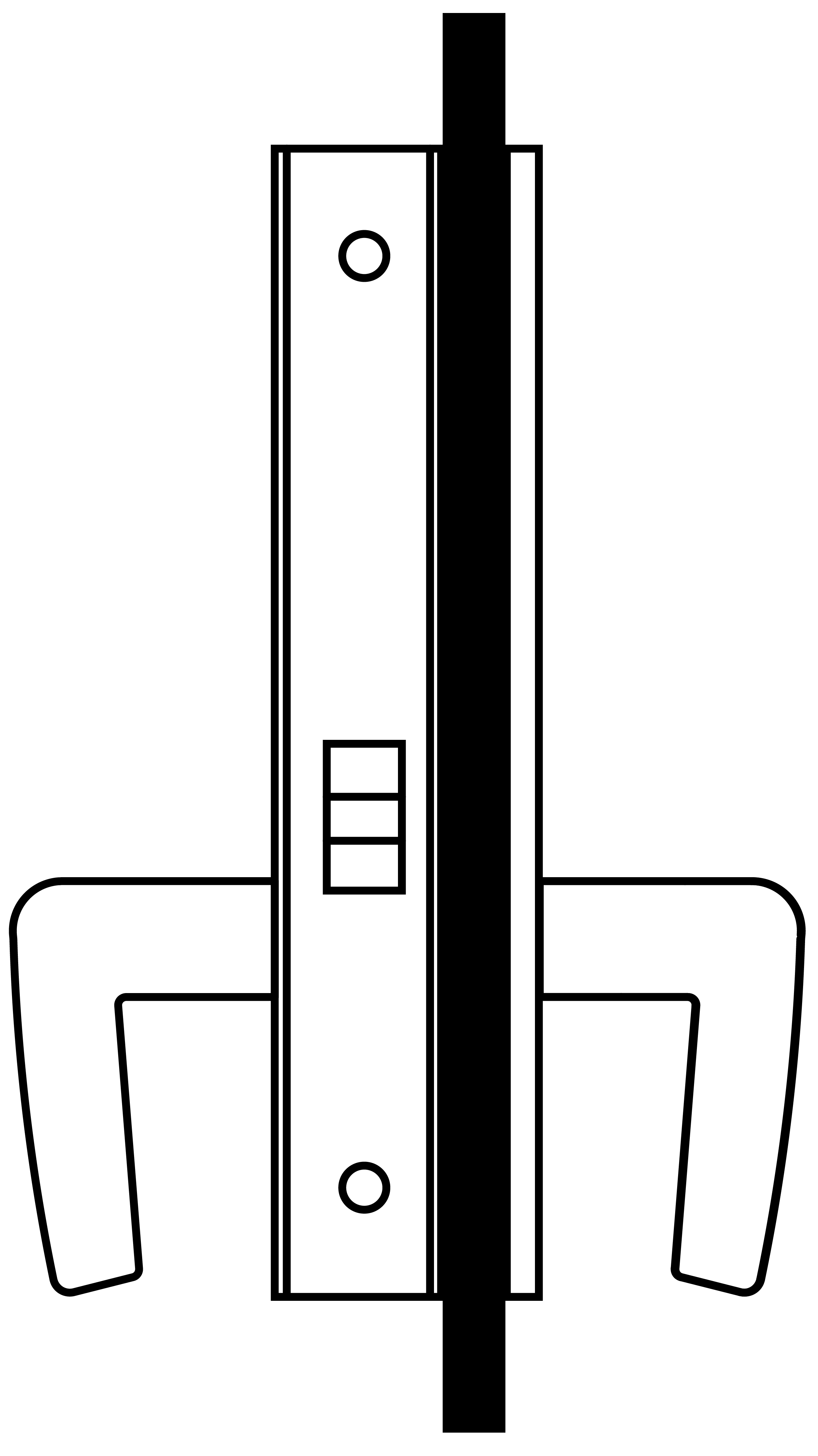

GR8625 Passage
- Latch bolt by lever either side.

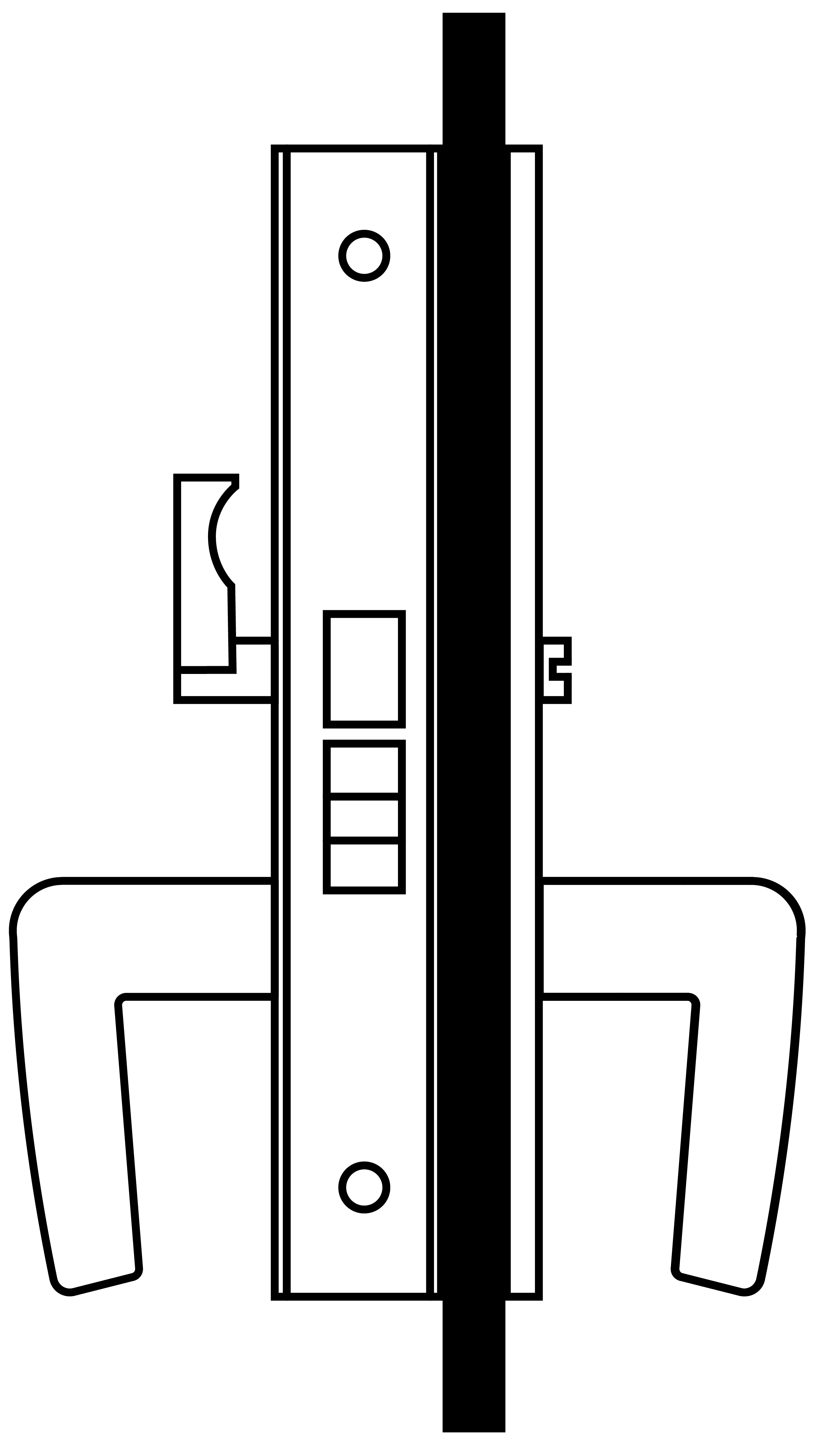

GR8639 Privacy
- Latch bolt by lever either side.
- Deadbolt by turn piece inside and optional emergency key outside.

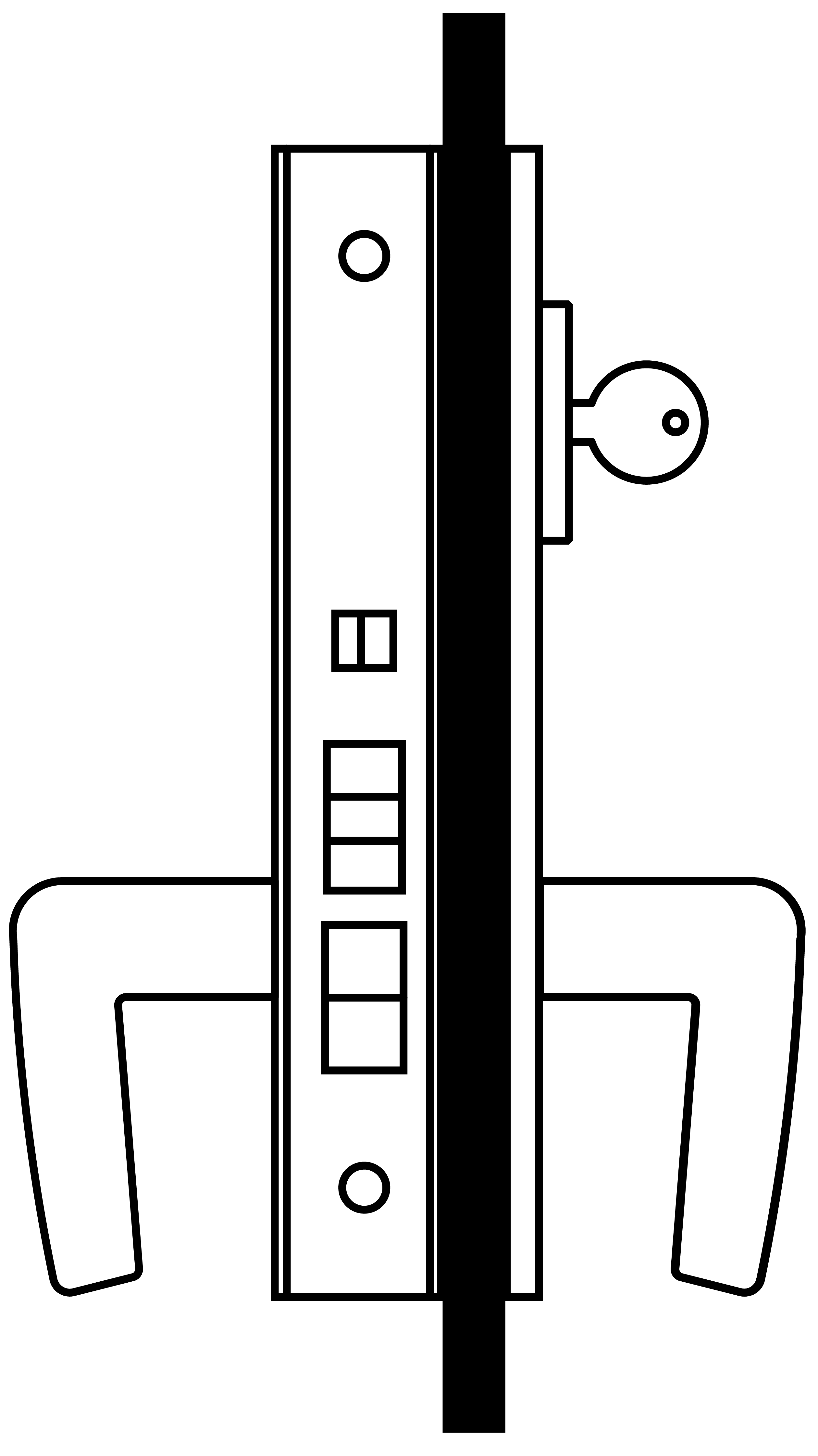

GR8656 Entrance or Office
- Latch bolt by key outside and handle either side unless outside handle is locked by toggle-action stop.
- Auxiliary latch deadlocks latch bolt.

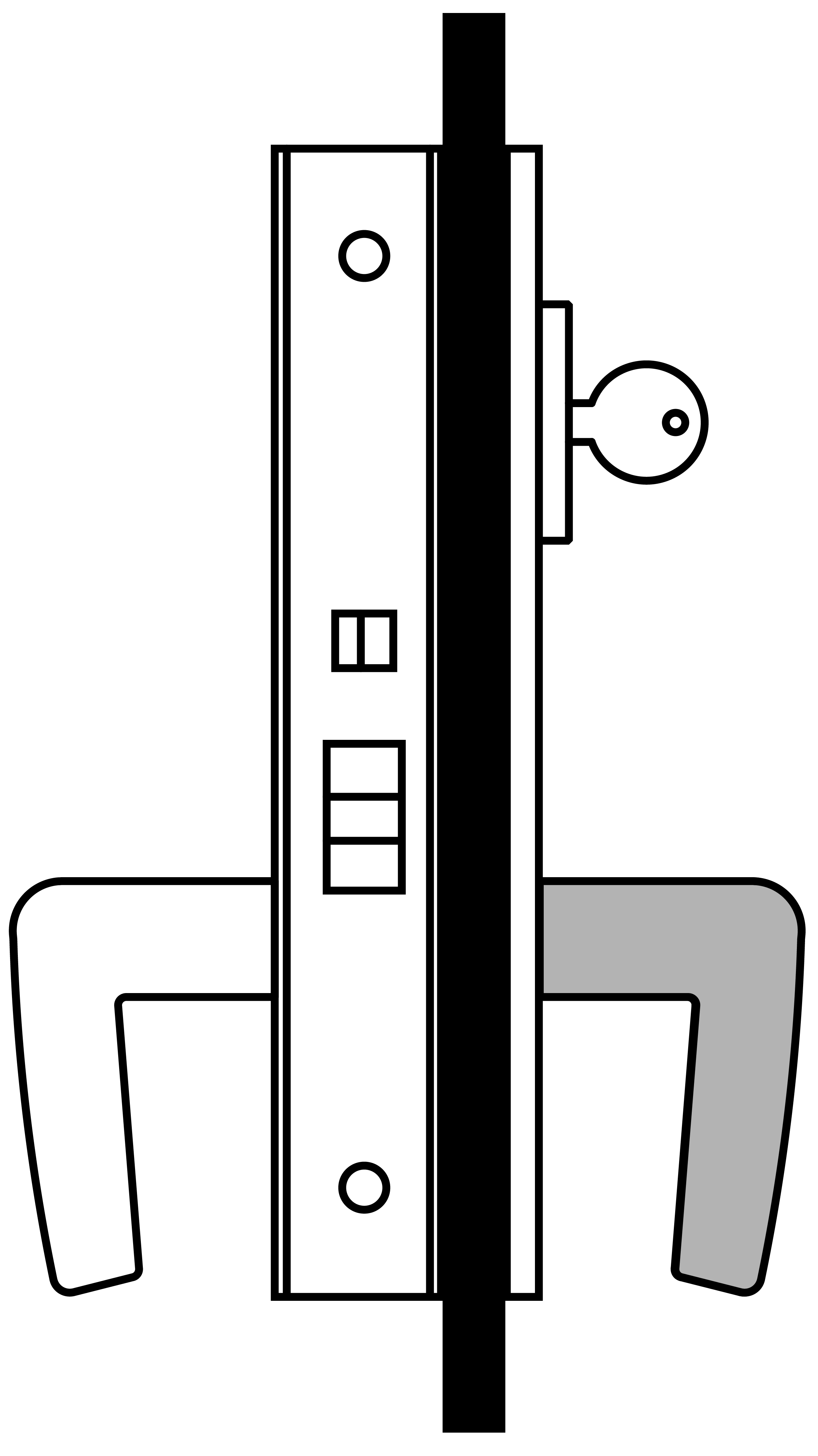

GR8659 Storeroom
- Latch by handle inside and key outside.
- Outside handle always rigid.
- Auxiliary latch deadlocks latch bolt.
Sell Sheet
Specification Sheets
- Spec.GR8724-RH.LH
- Spec.GR8724-RHR.LHR
- Spec.GR8725-RH.LH
- Spec.GR8725-RHR.LHR
- Spec.GR8739-RH.LH
- Spec.GR8739-RHR.LHR
- Spec.GR8756-RH.LH
- Spec.GR8756-RHR.LHR
- Spec.GR8759-RH.LH
- Spec.GR8759-RHR.LHR
Video
-
GR87 Rabbeted Glass Patch Mortise Sets
Product Catalog
-
Glass Door Product Catalog
Click on a swatch below to get a closer look
-
US28
Satin Aluminum
-
ESN
Electroless Nickel
-
US19
Oxidized Black + Lacquer
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness.
Examples
-
Rabbeted Glass Patch Entrance Set | Glass Wall
E.g.: GR8756. 112. 18L. US28. RH. 1/2 -
Rabbeted Glass Patch Office Set | Aluminum Frame (4-7/8" Strike)
E.g.: GR8759. 112. 19L. US19. LH. 1/2 -
Rabbeted Glass Patch Passage Set
E.g.: GR86725. 112. 29L. ESN. RH. 1/2
Notes
- GR87 can be set up for levers by other manufacturers upon request.
- Access control applications available.
- Cylinders must be specified separately if required.
