CH M9100ELR-SEC
Motor Drive Electrified Latch Retraction Crescent Mortise Set
Allows touchless entry for infection control. The new CH M9100ELR-SEC utilizes Motor Drive Electrification to retract the latch of the mechanical lock allowing access without grasping exterior door hardware. When paired with Ligature Resistant Crescent Handles, it is an ideal solution within behavioral healthcare facilities. Easily activated with a credential, hospital staff does not need to continually touch door handles. This electrified solution helps stop the spread of infection by allowing access with a simple push.
Ligature Resistant
ADA Compliant
- Grade 1 Certified to ANSI/BHMA A156.13.2005 Standard.
- Meets BHMA 156.34 Ligature Resistant Trim Standard.
- UL Listed 3 Hour (Mechanics R13846/R27504 and Electronics R10121).
- Backsets: 2-3/4" standard (3-3/4", 5", 6" are available special order).
- Operation: Key cylinder (by others) will override electronics to retract latch bolt.
- 24VDC +/110%
- 500mA MAX Inrush
- 200mA MAX Holding
- AE - AUTHORIZED EGRESS: also referred to as REQUEST TO EXIT (or REX switch), monitors the use of the INSIDE trim when the OUTSIDE trim is locked.
- ELECTRICAL SPECIFICATIONS:
- SPDT Mechanical switch.
- Voltage Current.
- Non-polarized Leads.

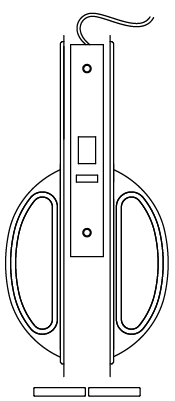

CH M9125ELR-SEC
- Latch bolt by handle either side.
- Inside and outside trim always free.
- FAIL SECURE OPERATION ONLY:
- Latch retracts when power is applied.

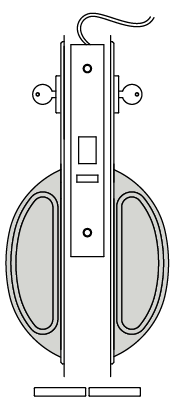

CH M9158ELR-SEC
- Latch bolt by key either side.
- Inside and outside trim always rigid.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION ONLY:
- Latch retracts when power is applied.
CH M9159ELR-SEC
- Latch bolt by key outside.
- Inside trim always free.
- Outside trim always rigid.
- Auxiliary latch deadlocks latch bolt.
- FAIL SECURE OPERATION ONLY:
- Latch retracts when power is applied
Sell Sheet
Product Catalog
-
Ligature Resistant Catalog
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function. Backset. Trim. Finish. Hand. Door Thickness. Special Options
Examples
-
Crescent Handle | Electrified Latch Retraction | Inside Handle Active | Authorized Egress
E.g.: CH M9159ELR-SEC-AE. 234. L.PC. US26D. RH. 134 -
Crescent Handle | Electrified Latch Retraction | Handles Inactive Both Sides | Cylinder Collar
E.g.: CH M9158ELR-SEC. 234. S.PC. US26D. RH. 134. LRCC.187 -
Crescent Handle | Electrified Latch Retraction | Both Handles Active
E.g.: CH M9125ELR-SEC. 234. S.PC. US26D. LH. 134
Notes
- Access control components by others.
- M9100ELR lock is ideal to pair with a low energy power operator (by others).
- Specify LRCC.A: Ligature Resistant Cylinder Collar (‘A’ based on cylinder application or length).
