LR-PB-SW

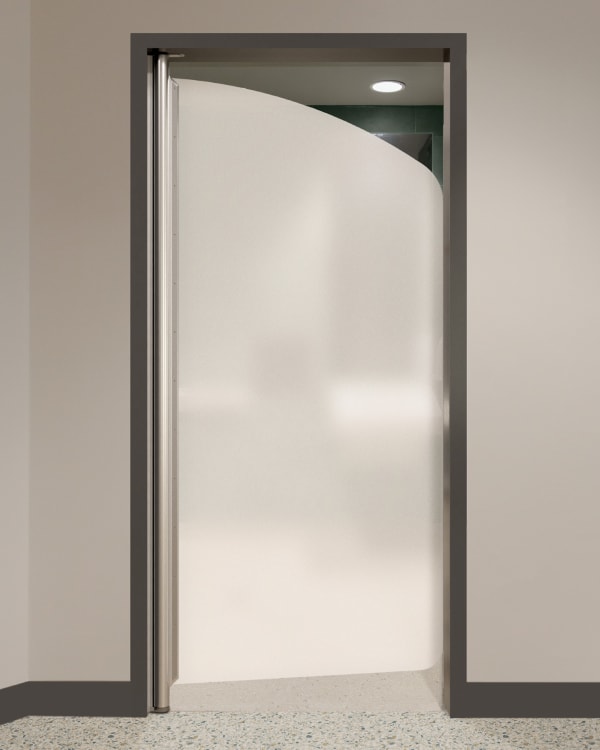

Ligature Resistant Privacy Bathroom Swinging Door
Designed to be a heavy-duty, cost-effective solution that provides increased safety and privacy in the bathroom. This patented swinging door solution can hold over 300lbs and operates without springs, which removes possible ligature points and allows the door to swing in both directions. It can open to 90° in either direction, stay open by design, and when moved to approximately 60° will self-close centered to the opening.
Ligature Resistant
ADA Compliant
Color
- When using other manufacturers’ doors, please specify Door Thickness (3/4” maximum).
- Custom system heights available, please call for assistance (standard system height is 78”).
- The top of the door is sloped. It can be customized to meet specifications.
- Available with 1/8" thick flexible Frosted Polycarbonate (FP125).
- Optional Crescent Pull, please call for assistance.
- Made from anodized aluminum and available in a variety of finishes and colors (limited availability).
- The LR-PB-SW system is ideal for en suite bathroom doors and can be customized for shower applications.
Product Catalog
-
Ligature Resistant Catalog
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function. Frame Width. Door.
Examples
-
LR-SW | Frosted Polycarbonate Standard
E.g.: LR-SW. 36. FP375 -
LR-SW-DS | Frosted Polycarbonate Double Sloped Door
E.g.: LR-SW-DS. 36. FP125 -
LR-SW | HDPE Plastic Door Color
E.g.: LR-SW. 36. HDPE.BLUE
Notes
- FP375 (Frosted Polycarbonate Door - 3/8" thick).
- FP125 (Frosted Polycarbonate Door 1-1/8" thick).
- HDPE Color Plastic (HDPE.COLOR - 1/2" thick).
