SC-LR-SDS
Secure Cabinet Ligature Resistant Sliding Door System for Medical Gases
The patented SC-LR-SDS Secure Cabinet Ligature Resistant Sliding Door System is a solution designed for full-height or smaller cabinet doors, providing secure concealment of medical gases, outlets, and other equipment in ED and dual-purpose rooms. Available in single- or double-leaf configurations, the system latches in both the open and closed positions. A concealed track supports a 1-3/4″ thick door with a minimal surface-applied gap and no exposed anchor points or cavities, while a concealed vertical rod bolt locks directly into the track for added security without an accessible latch bolt or strike. The design also prevents access to the top edge of the door as a ligature point.
Ligature Resistant
- Latches when closed or open.
- Available in a single or double door style.
- Concealed track system hangs a 1-3/4” thick door with minimal surface applied gap without any exposed anchor points or cavities.
- Concealed vertical rod bolt locks into track providing privacy with no accessible latch bolt or strike.
- Top door edge not accessible as a ligature point which eliminates barricade tactics and using door as a weapon.
- Rubber cladding dampens closure allowing quieter operation and more resistance to abuse.
- Another application for our LR-SDS family of products.

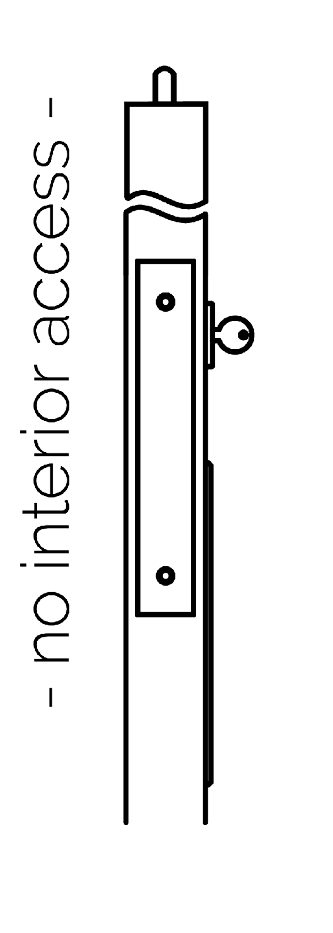

LR-SL-SDS-9159 - "Concealment" Storeroom - Self Latching
- Vertical latch retracted by key outside.
- Recessed pull, on outside (or Rigid ADA crescent handle on outside).

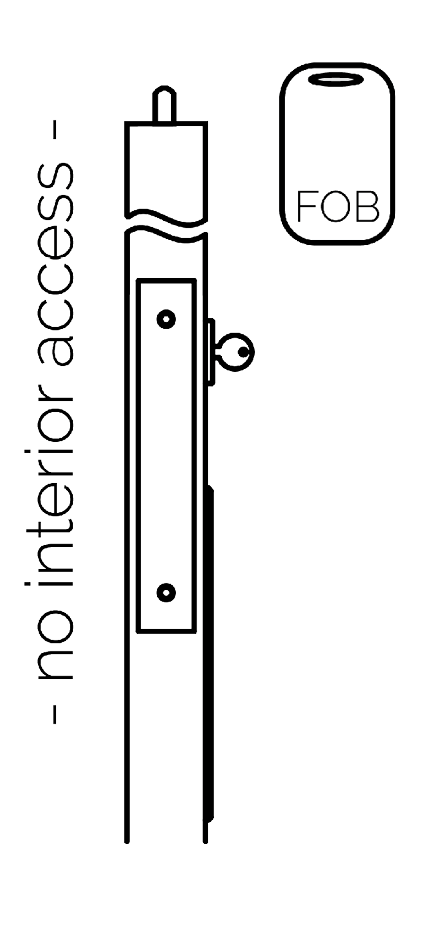

LR-SL-SDS-M9159ELR - Storeroom Electrified - Self Latching with Electric Latch Retraction
- Vertical latch electronically retracted by key or fob.
- Fail Secure operation, remains locked when power is removed.
- Recessed pull on outside (or Rigid ADA crescent handles on outside).
Specification Sheet
Product Catalogs
-
LR-SDS Catalog
-
Ligature Resistant Catalog
Video
-
SC-LR-SDS Secure Cabinet Ligature Resistant Sliding Door System for Medical Gases
SC-LR-SDS Secure Cabinet Ligature Resistant Sliding Door System for Medical Gases
Click on a swatch below to get a closer look
-
US26D
Satin Chrome
-
US32D
Satin Stainless Steel
US26D
Satin Chrome
How to Specify
Function. Finish. Door Size. Door Thickness. Door Type. Door Style
Examples
-
SC-LR-SDS | Double Door
E.g.: SC-LR-SDS. US26D. 134. WOOD. 2'0".7'4". DOUBLE -
SC-LR-SDS | Single Door
E.g.: SC-LR-SDS. US26D. 134. WOOD. 30"x30". SINGLE
